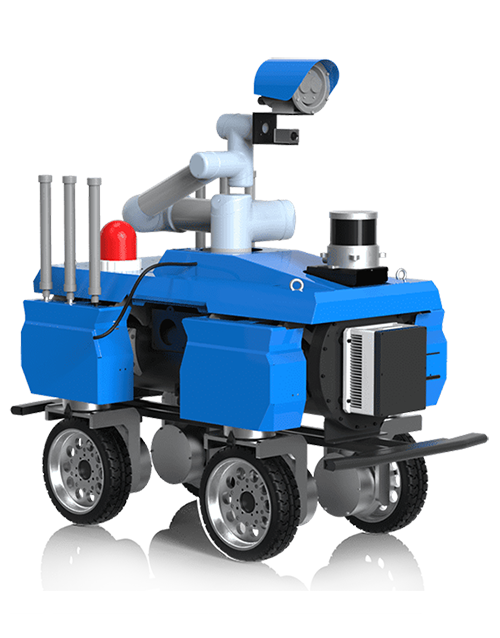

Explosion-Proof Inspection Robot

Name: Explosion-Proof Inspection Robot
Brand: Furen
Rating: 5.0 (40 reviews)

Product features:

This robot can be equipped with various environmental sensors and spectral leak monitoring systems. It supports customized tasks such as meter reading, temperature measurement, and abnormal behavior monitoring for routine inspections, effectively assisting daily patrols and post-disaster leak gas surveys.

Precise Monitoring in High-Risk Environments

VOCs ultra-sensitive detection: Supports ethylene leak monitoring, with customizable analysis for alkanes/sulfur-containing gases.

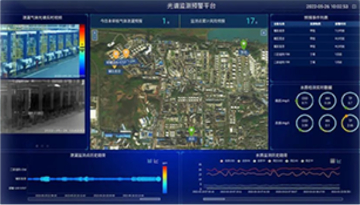

Spectral leak visualization: AI algorithms generate spatial distribution maps of gas concentrations for real-time tracking of leak diffusion ranges.

Industrial-Grade Safety Design

Full-machine explosion-proof certification, specifically customized for chemical explosion-proof scenarios.
IP65 protection rating, adaptable to harsh conditions such as water accumulation and dust.

Strong Terrain Adaptability

Four-wheel eight-drive differential chassis, supports 15° climbing, maximum speed 4.5km/h.
Suitable for complex scenarios like routine inspections and post-disaster leak surveys.

Fully Autonomous Intelligent Operation & Maintenance

Autonomous navigation + ultrasonic obstacle avoidance + path re-planning, automatically bypassing obstacles.
Automatic charging with endurance ≥8 hours, supporting wired/wireless dual modes.

Multi-Task Integration Capability

Simultaneously performs tasks such as temperature measurement, abnormal behavior recognition, and gas leak surveys.
Equipped with multi-gas sensors, spectral video cameras, and audible/visual alarms for multi-dimensional data collection.

24-Hour Operation

Unaffected by extreme environments like high temperatures or severe cold.
Risk substitution: Reduces human entry into high-risk areas (e.g., oil/gas leak zones, high-voltage substations).
Efficiency improvement: Doubles road inspection efficiency, compressing the cycle from defect detection to repair by 90%.

Extreme Scenario Applicability

Safe inspections in explosion-proof environments such as chemical and oil/gas facilities.
Flexible navigation in narrow pipelines and densely equipped areas.

Quantity:
Availability:





Inquire Add to Basket

Brand:
Furen

Product Description

VOCs Monitoring High monitoring sens itivi y: 1/4 LEL@100m for ethylene;

Visualization

df7065545c744495a6d0999b1dcce3ce

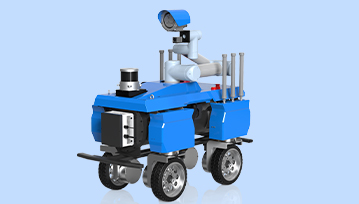

Intelligent Operation Autonomous navigation, automatic obstacle avoidance, automatic positioning, and autonomous charging.

7f05a344645b46f583d2ee861ca12d3e

Explosion-Proof Design Specifically designed for explosion-proof requirements in the chemical safety industry; environmental sensors work collaboratively, suitable for routine inspections and post-disaster gas leak surveys.

Technical Parameters:

Dimensions 1185*1000*760mm

Weight ≤230Kg

Explosion-Proof Rating Ex d IIC T6 Gb (gas explosion-proof)

Protection Rating IP66

Operating Temperature -20°C ~ +45°C

Chassis Type All-terrain

Drive Mode Four-wheel eight-drive

Maximum Travel Speed 5KM/H

Climbing Ability ≤30° (no-load), ≤20° (full-load)

Obstacle Crossing Height ≤100mm (obstacles)

Turning Radius 0m (in-place rotation)
