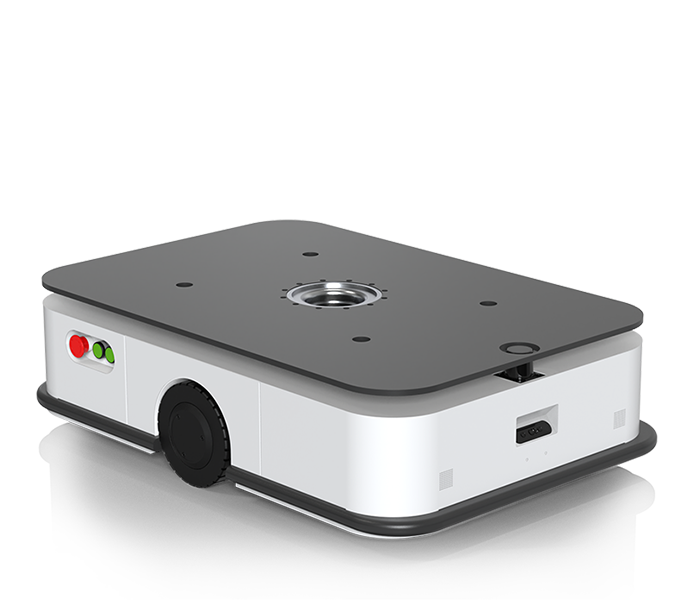

Lurking Lifting AGV

Product features:

Efficient Lifting

• Electric planetary gear mechanism: Lift in 2-4 seconds, adjustable height 50-100mm for various pallets/racks.
• Stable lifting (vibration ≤ ±2mm) for safe transport of precision materials; 20% higher single-cycle efficiency than traditional forklifts.

Flexible Mobility

• Zero turning radius (in-place rotation), max no-load speed 2.0m/s for narrow aisles.
• Dual-wheel differential drive for smoother turns, reducing path time by 20%.

Precise Load & Size Match

• Rated loads: 40-800kg (multiple models).
• Dimensions: 800×600×280mm (customizable); 200mm low chassis lurks under racks without facility modifications.

Flexible Navigation

• QR code: ±5mm accuracy; Laser SLAM: ±10mm. Optional magnetic stripe; adapts to different scenarios.

All-Scenario Obstacle Protection

• Front/rear lidar + bump strips; <0.1s response (brake or bypass).
• Audible/visual alarms to alert personnel and reduce collision risks.

Dual Emergency Stop & Braking

• Physical button + software/hardware soft stop; electromagnetic brake for automatic power-off braking to prevent slippage.

Product features:
Long Endurance & Fast Charging

• Auto-return charging (with scheduling system) minimizes manual intervention and idle time.
